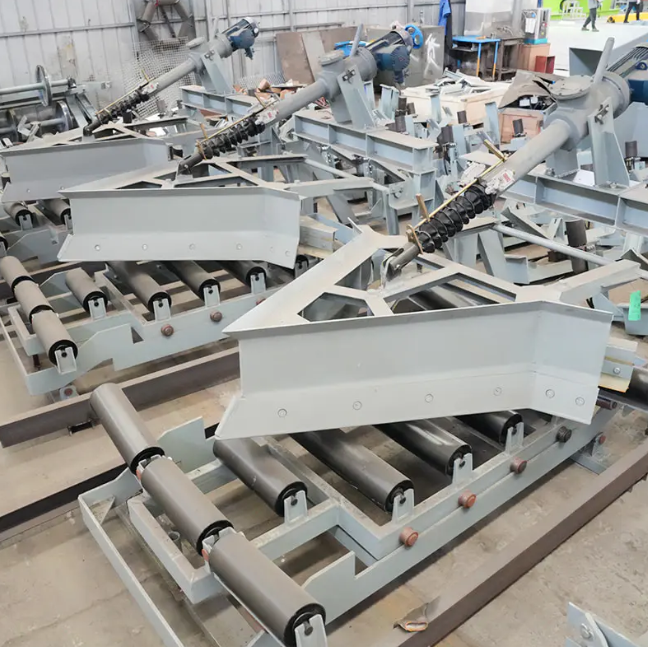

Large Angle Belt Conveyor

Main technical features:

Large inclination conveyor greatly shortens the length of the conveyor line and reduces land occupation compared to conventional belt conveyors; Elevate to a height of up to 200 meters; Complete variety and specifications, wide range of conveying capacity; Compared with conventional belt conveyors, the energy consumption per unit weight of material transportation is reduced by 30%; Higher reliability and lower maintenance costs compared to bucket elevators; The service life is basically equivalent to that of conventional belt conveyors; The operating environmental conditions and the types of materials adapted are basically the same as those of conventional belt conveyors.

The usage conditions of DJ type large angle edge belt conveyor:

Transport bulk materials with a bulk density of 500-2500Kg/M3 and a block size of less than 350mm; The temperature range for adapting to the working environment is generally between -20 and+40 ℃; For the transportation of special materials such as high temperature, acid and alkali, oil, or special environmental conditions such as explosion prevention and flame retardancy, they should be separately proposed in order to take special protective measures

Basic structure and composition:

The DJ type large angle edge belt conveyor consists of a wavy edge conveyor belt, a driving unit, a drum group, a carrying roller group, a return conveyor belt device, a concave arc section reversing device, a convex arc section reversing device, a cleaning device, a tightening device, a frame, and accessories.
The driving units of the DJ type large angle side belt conveyor include three types: Y-zJ shaft mounted reducer unit, wD external electric drum, and Y-DcY orthogonal shaft conical cylindrical gear reducer unit. When the driving power is greater than 45Kw, a Y-DCY orthogonal axis conical cylindrical gear reducer unit is generally selected.

Wave shaped edge conveyor belt:

The wavy edge conveyor belt consists of a base belt, wavy edges, and transverse partitions, which are connected to the base belt through secondary vulcanization.

(1) The base belt includes cotton canvas core, chemical fabric core, steel wire rope core, rubber conveyor belt or conveyor belt with transverse rigid layer.

(2) The wavy edge is divided into light (N), medium (S), and heavy (ES) types, with two shapes: S-shaped and W-shaped;

(3) The transverse partition is made of fiber composite material, which has strong bearing capacity, impact resistance, and good stiffness. Its models include T-type, TS type, C-type, TC type, and TCS type.

When the conveying inclination angle is less than 40 °, the transverse partition should be selected as T or TS type; when the conveying inclination angle is greater than 40 °, the transverse partition should be selected as C, TC or TCS type.
